Native 16 bit A/D: The new Sony sensor has native 16-bit A/D on-chip. The output is real 16-bits with 65536 levels. Compared to 12-bit and 14-bit A/D, a 16-bit A/D yields higher sample resolution and the system gain will be less than 1e-/ADU with no sample error noise and very low read noise.
BSI: One benefit of the back-illuminated CMOS structure is improved full well capacity. In the back- illuminated sensor the light is allowed to enter the photosensitive surface from the reverse side. In this case the sensor’s embedded wiring structure is below the photosensitive layer. As a result, more incoming photons strike the photosensitive layer and more electrons are generated and captured in the pixel well. This ratio of photon to electron production is called quantum efficiency. The higher the quantum efficiency the more efficient the sensor is at converting photons to electrons and hence the more sensitive the sensor is to capturing an image of something dim.
TRUE RAW Data: In the DSLR implementation there is a RAW image output, but typically it is not completely RAW. Some evidence of noise reduction and hot pixel removal is still visible on close inspection. This can have a negative effect on the image for astronomy such as the “star eater” effect. However, QHY Cameras offer TRUE RAW IMAGE OUTPUT and produces an image comprised of the original signal only, thereby maintaining the maximum flexibility for post-acquisition astronomical image processing programs and other scientific imaging applications.
Zero Amplify Glow: This is also a zero amplifer glow camera.
Cooling & Anti-dew Control: In addition to dual stage TE cooling, QHYCCD implements proprietary technology in hardware to control the dark current noise. The optic window has built-in dew heater and the chamber is protected from internal humidity condensation. An electric heating board for the chamber window can prevent the formation of dew.
Sealing Technology: Based on almost 20-year cooled camera design experience, The QHY cooled camera has implemented the sealing control solutions. The sensor itself is kept dry with our silicon gel tube socket design for control of humidity within the sensor chamber. By the way, there’s no oil leaking.
Advanced Functions
Multiple Readout Modes
Multiple Readout Modes are special for QHY 16-bit Cameras (QHY600/268/461/411). Different readout modes have different driver timing, etc., and result in different performance. See details at “Multiple Readout Modes and Curves” Part.
Random change thermal noise suppression function
You may find some types of thermal noise can change with time in some back-illuminated CMOS cameras. This thermal noises has the characteristic of the fixed position of typical thermal noise, but the value is not related to the exposure time. Instead, each frame appears to have its own characteristics. The QHY600/268/461/411 use an innovative suppression technology that can significantly reduce the apparent level of such noise.
UVLO Protection
UVLO(Under Voltage Locking) is to protect the electronic device from damage caused by abnormally low voltages.
Our daily life experience tells us that the actual operational voltage of an electrical device must not significantly exceed the rated voltage, otherwise it will be damaged. For such precision equipment as cameras, long-term work at too low input voltage can also be detrimental to the working life of the camera, and may even make some devices, such as power manager, burn up due to long-term overload. In the all-in-one driver and SDK after 2021.10.23 stable version, the camera will give a warning when the input voltage of the camera is below 11V.
Optimizing USB Traffic to Minimize Horizontal Banding
It is common behavior for a CMOS sensor to contain some horizontal banding. Normally, random horizontal banding can be removed with multiple frame stacking so it does not affect the final image. However, periodic horizontal banding is not removed with stacking so it may appear in the final image. By adjust the USB traffic in Single Frame mode or Live Frame mode, you can adjust the frequency of the CMOS sensor driver and it can optimize the horizontal banding appeared on the image. This optimized is very effective to remove the periodic banding in some conditions.
A typical Periodic Horizontal Noise under certain USB_TRAFFIC values.
After Adjusting the USB Traffic to avoid the periodic horizontal noise.
Reboot the camera by power off and on
The camera is designed to use the +12V to reboot the camera without disconnecting and reconnecting the USB interface. This means that you can reboot the camera simply by shutting down the +12V and then powering it back on. This feature is very handy for remote controlling the camera in an observatory. You can use a remotely controlled power supply to reboot the camera. There is no need to consider how to reconnect the USB in the case of remote control.

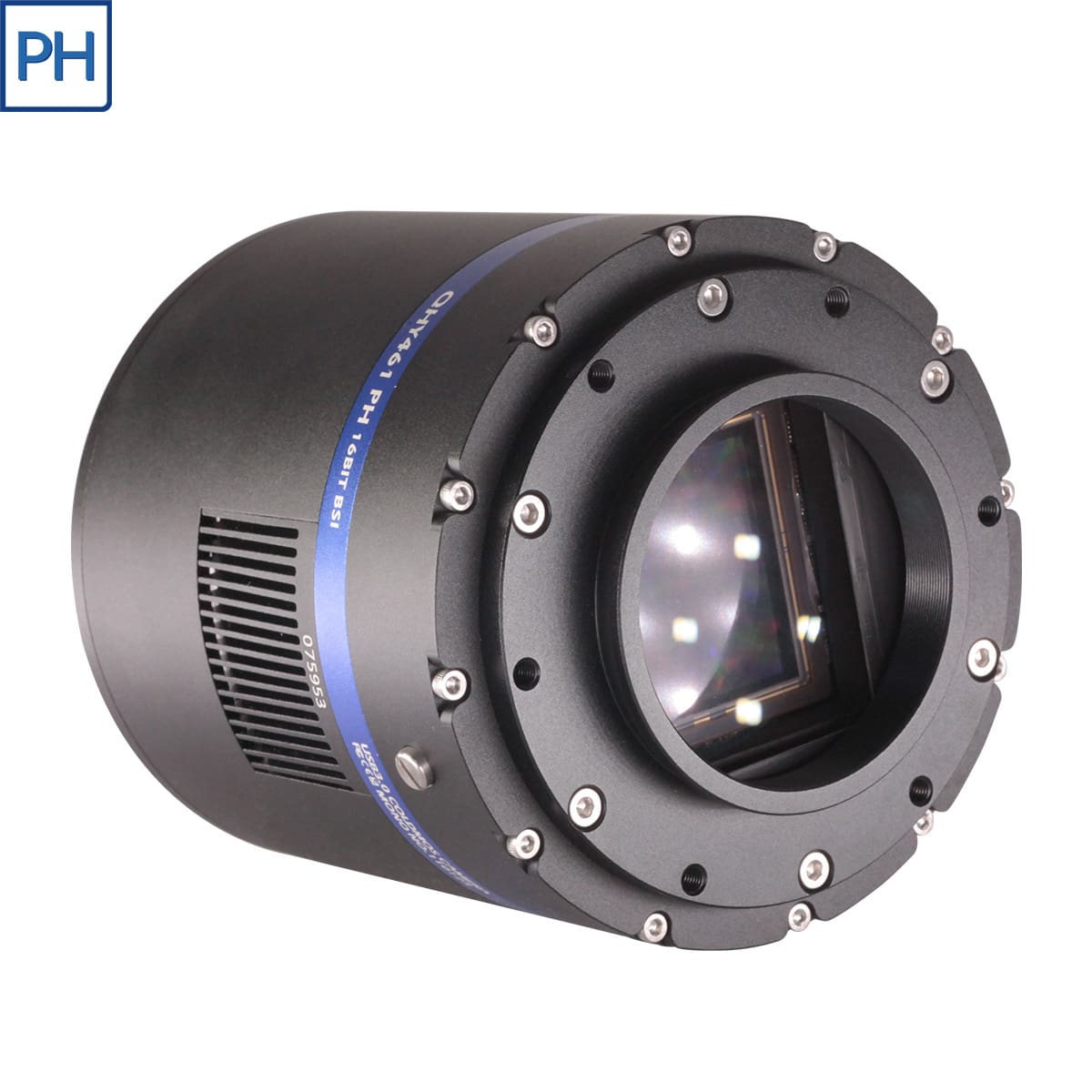

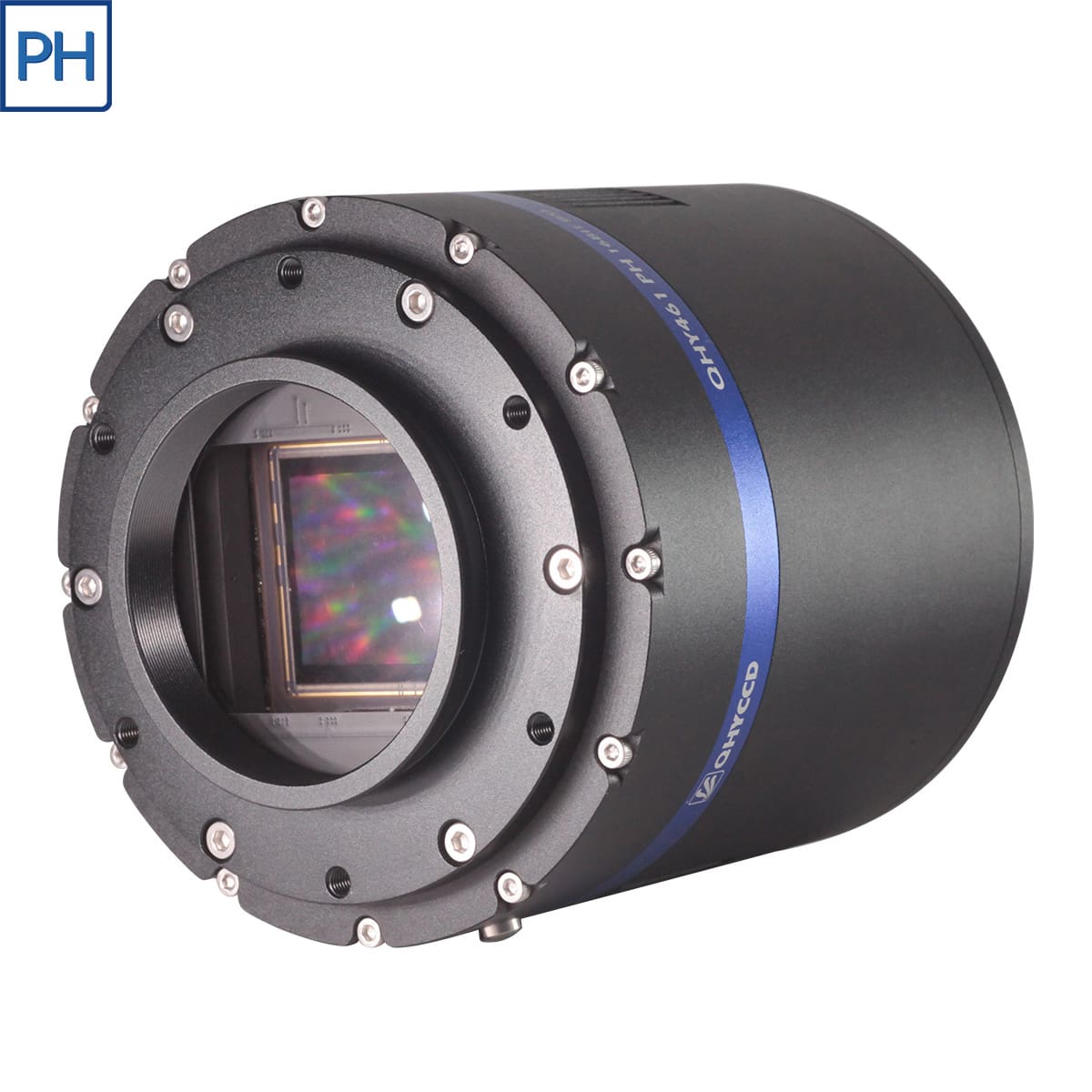

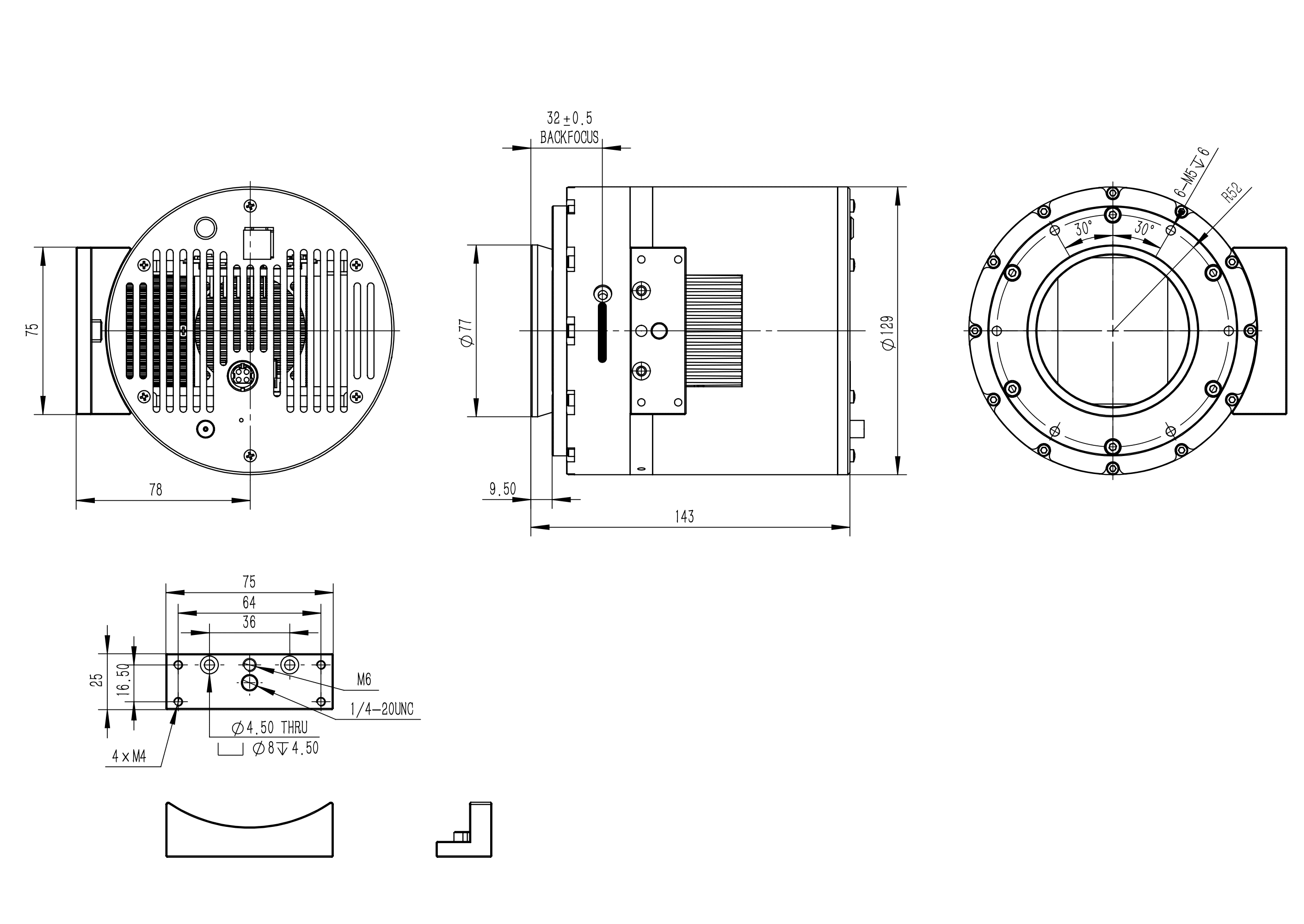

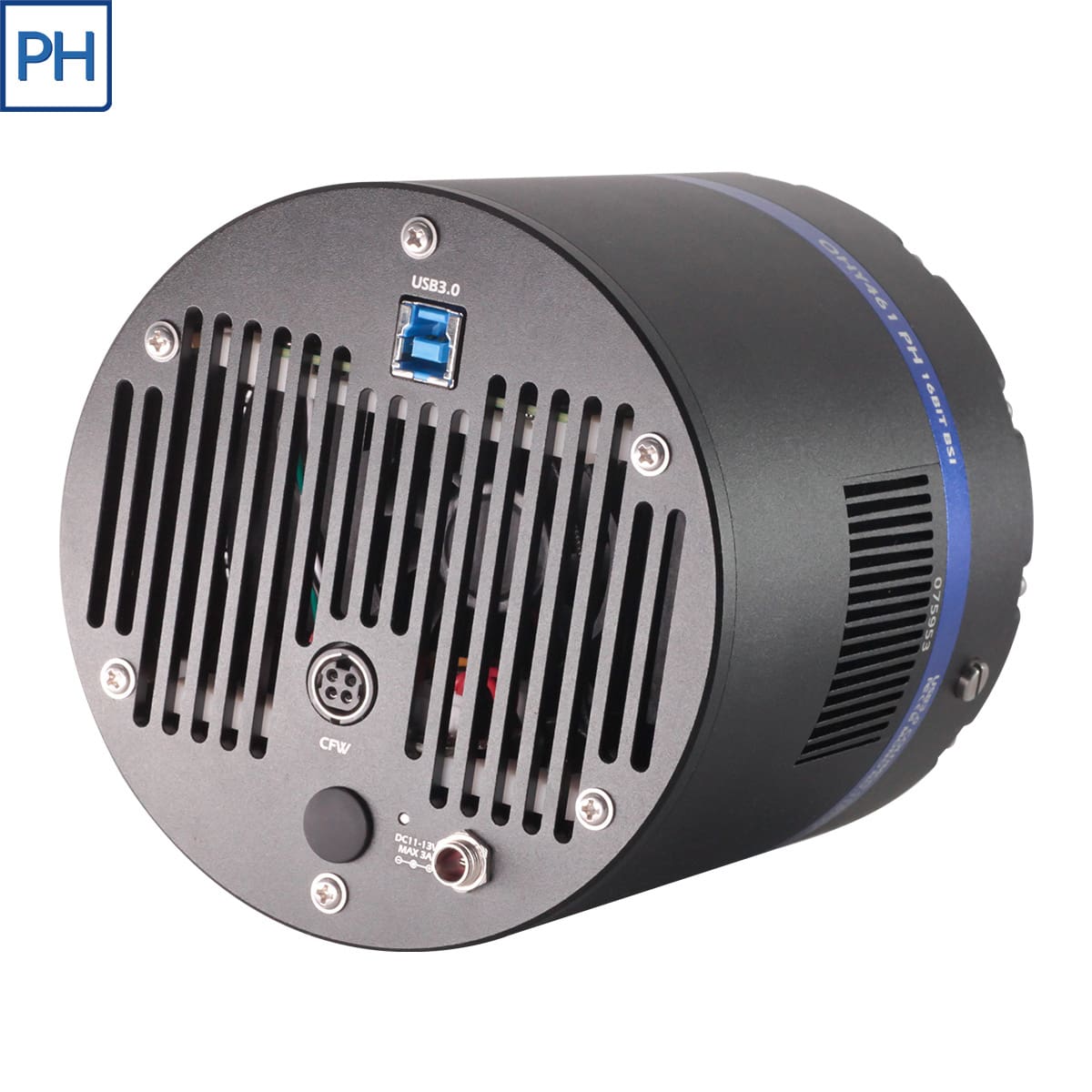

Specifications
Model
QHY461PH
CMOS Sensor
SONY IMX461
Mono/Color
Mono Only
FSI/BSI
BSI
Pixel Size
3.76μm*3.76μm
Effective Pixel Area
11664*8748
Total Pixel Area
11760*8842 (include optical black area and overscan area)
Effective Pixels
102 Megapixels
Sensor Size
Medium Format (44mm*33mm)
A/D
Native 16-bit (0-65535 greyscale) A/D
Full Well Capacity (1×1, 2×2, 3×3)
Standard Mode
50ke- / 200ke- / 450ke-
Extended Full Well Mode
80ke- / 320ke- / 720ke-
Frame Rates
Full Resolution: 2.7FPS@8bit, 1.3FPS@16bit
Readout Noise
1e- to 3.7e- (HGC Mode)
Dark Current
0.003e-/pixel/sec @-20℃
Exposure Time Range
50μs – 3600sec

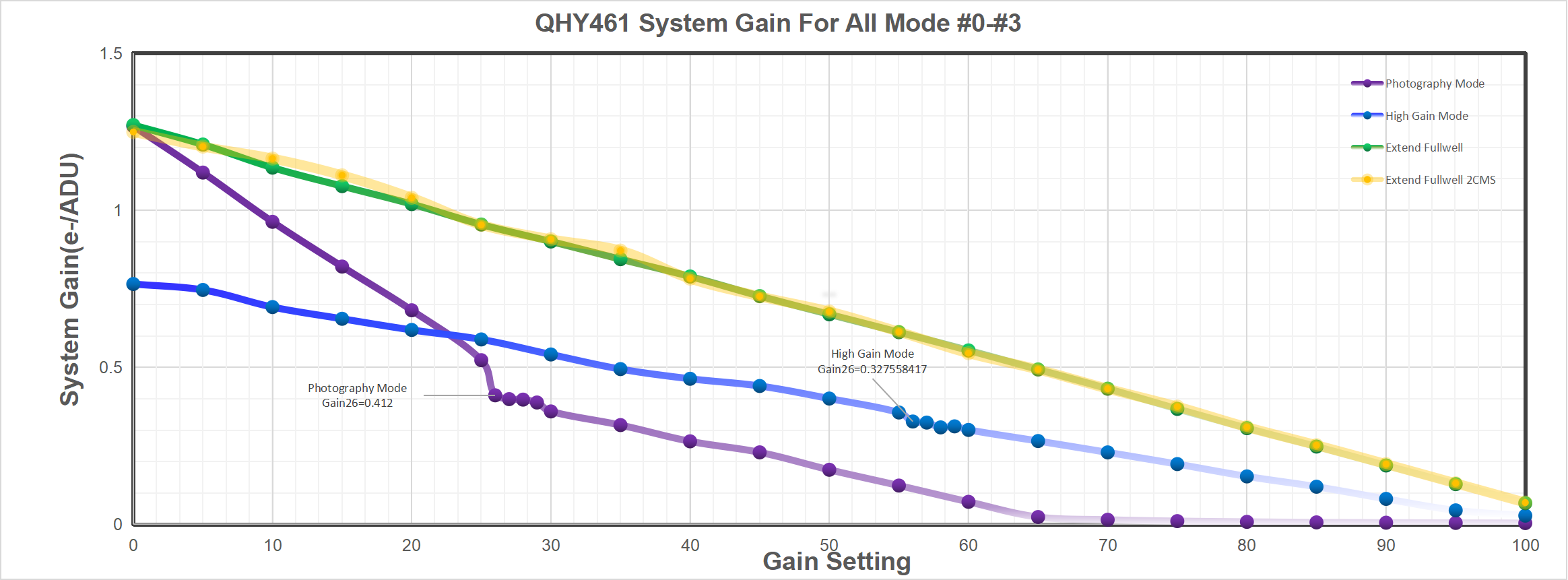

Recommend Gain*
26 (PH Mode, or Extended Full Well Mode)
56 (High Gain Mode)
*Learn more at the introduction of “Readout Modes”.
Amp Control
Zero Amplifer Glow
Shutter Type
Electronic Rolling Shutter
Computer Interface
USB3.0
Built-in Image Buffer
1GB DDR3 Memory Buffer
Cooling System
Dual Stage TEC cooler:
– Long exposures (> 1 second) typically -35℃ below ambient
– Short exposure (< 1second) high FPS, typically -30℃ below ambient(Test temperature +20℃)
Optic Window Type
AR+AR High Quality Multi-Layer Anti-Reflection Coating
IC 1396 Elephant’s Trunk Nebula in Bi-Color palette (cropped) Capture by Denis Salnikov with QHY461 camera and AG Optical 14.5″ iDK telescope. Full resolution image
QHYCCD’s New QHY461-PH: Ideal Successor to KAF-16803 Based Cameras
For several decades monochrome CCDs were the sensor of choice for dedicated astro-imagers. Initially, CCDs were smaller in area than standard 35mm film frames but they were more sensitive and did not suffer from reciprocity failure, a common characteristic of film emulsions. However, CCDs were expensive and it took some time before 35mm sized sensors were available at prices that amateurs could afford. In the meantime, telescope optics capable of producing high resolution images over a large area continued to be improved. Eventually, around 2006, Kodak released two sensors designed for digital radiography, the KAF16803 and its cousin with larger pixels, the KAF-9000. Fortunately for amateur astronomers, these medium format sized monochrome sensors were priced more reasonably than their similarly sized predecessors and cameras with medium format CCDs could be made for astronomy that cost around $10,000 instead of $30,000 and more. The KAF16803 became highly desired for its 16 megapixel resolution and 36.8mm x 36.8mm image area. It remained the dream sensor for serious astro-imagers until only recently. Now, of course, it has been discontinued, along with most other commercially available CCDs that used to be of interest to amateur astronomers, falling victim to the many technological improvements in CMOS sensors that have pushed CMOS to the forefront of scientific imaging.
CMOS development followed a similar path as CCDs in size progression over time. Initially, CMOS were widely available in small sized sensors and gradually both quality and size increased until today Sony and other CMOS manufacturers fabricate large, scientific quality, high resolution CMOS sensors that surpass their CCD predecessors in nearly every way.
About 4 years ago, Sony released two, nearly identical, scientific CMOS sensors, the IMX411 and IMX461. The only significant difference between the two sensors was the pixel count. The IMX411 has the highest pixel count of any commercially available sensor, 151 Megapixels. It is still relatively expensive for amateurs and its large 54mm x 40mm image area also requires filters that are quite expensive when they can be found. However, the slightly smaller, 102 Megapixel, IMX461 is based on the same architecture as the 411 and its image area measures 44mm x 33mm, making it compatible with more commonly available and less expensive 50mm square filters. And, with the release of QHYCCD’s new photographic version QHY461-PH camera, the price is also now comparable to typical 16803 based cameras. This latest development makes the QHY461M-PH the ideal successor and updated replacement for serious imagers wanting an improved medium format camera to replace their aging, discontinued 16803 models.
The question then is how does the IMX461 sensor compare to the KAF16803? What are the advantages of the new IMX461 compared to the KAF16803?
Specification
Typical16803Camera
QHY461
Sensor
KAF16803 CCD
Sony IMX461 CMOS
Type
Front-Illuminated
Back-Illuminated
PixelSize
9um
3.76um
Resolution
4096 x 4096
11760 × 8896
TotalPixels
16 Megapixels
102 Megapixels
Sensor Size(HxV)
37mm x 37mm
44mm x 33mm
SensorSizeDiagonal
52mm
55mm
Read Noise
13e-
1e- to 3.7e-
DarkCurrent
0.05e-@-20C
0.003e-@-20C
QuantumEfficiencyat 450nm
45%
90%
QuantumEfficiencyat 550nm
60%
83%
QuantumEfficiencyat 650nm
46%
59%
A/D
16-bit
16-bit
Fullwell
100ke-
50ke-/80ke-
DynamicRange
1:7,700
1:13,500
FullFrameDownload@16-bits
9 seconds per frame
0.77 seconds per frame
UserSelectableReadModes
1
4
SENSORTYPE
The 16803 is a front-illuminated CCD while the IMX461 is a back-illuminated CMOS. The back-illuminated structure of the IMX461 has several advantages over a front illuminated sensor including higher quantum efficiency and greater full well capacity per square um allowing smaller pixels to have equal or greater sensitivity and dynamic range as their front-illuminated counterpart. Moreover the CMOS structure developed by Sony has much lower noise than just about any CCD (See A/D Section, below).
PIXELSIZEAND RESOLUTION
Here the sensors are quite different. Whether we consider resolution just the ability to resolve detail or the number of pixels in an image, the IMX461 exceeds the 16803 by a significant margin. Ability to resolve detail is determined by the pixel size and the focal length. Many high quality fast wide field apochromatic refractors have the ability to illuminate a medium format sensor. High quality, short focal length refractors benefit from smaller pixels for highest resolution images. The IMX461 has over 6X the number of pixels as the KAF16803, 102 million vs. 16 million. Moreover, for large scopes, the 461 can be binned 2×2 to produce 7.5um pixels and still have an effective resolution of 25 Megapixels, still 56% more than the 16803.
SENSORSIZE
The image at the top of this article shows the relative sizes of the two sensors. The IMX461 is 44mm x 33mm with a 55mm diagonal. The KAF16803 is 36.8mm x 36.8mm with a 52mm diagonal. So through a given optical system, they have nearly the same FOV with the 461 having a slightly larger image area.
READ NOISE
At lowest gain, the 461 achieves read noise as low as 3.7 electrons, about 3 times lower than the 16803. At high gain, the 461 read noise is a remarkable 1e-, 10 times lower than the 16803. Such low read noise in high gain mode makes it possible to take multiple shorter duration exposures and stack them to achieve results comparable to single long exposures. This requires less emphasis on tracking and allows selection of the best frames to compile into the final image. Since read noise is a fixed value per exposure, regardless of exposure time, shorter exposures benefit more from cameras with lower read noise.
DARKCURRENT
Unlike read noise, dark current increases with exposure time and can be a dominant source of noise as it accumulates in long exposures. At -20C the 461 has a dark current of 0.003 e-/pixel/second, about 16 times lower than the 16803 at the same temperature. Since dark current noise increases with exposure time, longer exposures benefit more from cameras with lower dark current. Therefore, images from a QHY461- PH contain far less noise than those from a 16803 whether taking short or long exposures
QUANTUMEFFICIENCY
The peak QE of the IMX461 is 1.5X higher than the 16803 (90% vs. 60%) and its spectral response is higher across the entire visible spectrum. The 461 is therefore not only much lower in read noise and dark current than a 16803 but also higher in sensitivity again, without compensating for pixel size.
A/DCONVERSION
Most 16803 based cameras were designed with a 16-bit A/D. The QHY461-PH also has 16-bit A/D. However, it is worth noting the different way these two sensors go about digitizing their signals. The 16803 is a full frame CCD. The term “full frame” is used here in the technical sense. (The same term is also often used to describe any sensor that is the same size as a full 35mm film frame but that is not the meaning when applied to the structure of a CCD.) A full frame CCD is simply a CCD in which the full frame of pixels receives light during an exposure. At the end of the exposure the CCD is usually covered by a mechanical shutter to stop light from reaching the pixels while the signal is processed. The charge that has accumulated in the pixels is first transferred vertically row by row to the last row. The last row is shifted horizontally pixel by pixel where each pixel’s charge is digitized passing through a single 16-bit A/D. Each time the charge is shifted there is some possibility of error creeping into the signal adding to the noise in the image.
In the IMX461, however, instead of all the pixels being processed by one A/D, each column of pixels has its own 16-bit A/D. Moreover, as the charge is being shifted down the column to the A/D, noise reduction is applied both before the A/D conversion and after the A/D conversion. This not only dramatically speeds up the readout process, it also dramatically reduces readout noise.
FULLWELLCAPACITY
Larger pixels produce greater full well but, even though the 461 has much smaller pixels than a 16803, it has a full well capacity of 50,000 electrons in standard mode and about 80,000 electrons in extended mode, unbinned. In binned modes, the 461 full well can be increased to as much as 320,000e- when binned 2×2 or 720,000e- when binned 3×3.
DYNAMICRANGE
The dynamic range of a sensor is typically defined as the full-well capacity divided by the read noise and is an indication of a camera’s ability to capture very dim signals and bright signals in the same exposure. The read noise of a typical 16803 camera is around 13e- and the full well is 100,000. This gives us a dynamic range of about 1:7700. At lowest gain, the read noise of the QHY461-PH is 3.7e- and the full well is 50,000 in standard mode. This yields a dynamic range of 1:13,500, or about 1.75X greater than the 16803.
READ MODES
Generally, the read mode of a typical CCD camera is set by the camera’s designers and is not adjustable by the user. This is the case with the majority of 16803 based cameras. Sony, however, provides multiple read modes for the IMX461 and these are easily selectable by the user in software when the camera driver is loaded. One mode, for example, extends the full well capacity from 50,000e- to about 80,000e- with 1×1 binning. Otherwise, any one of the four read modes may be selected whenever the camera is connected to optimize the read noise, gain, full well and/or dynamic range for a particular type of imaging.
DOWNLOADTIME/FRAMERATE
It is notable that in the specifications for typical 16803 based cameras, the time it takes for an image to download to the computer was normally defined as DOWNLOAD TIME and was normally expressed in seconds per frame. Now, however, with modern CMOS sensors this same specification is defined as FRAME RATE and is typically expressed in Frames Per Second. The rate at which the sensor is read out contributes to your productivity, particularly when taking multiple short exposures and certainly less frustration when focusing or centering an object. This image download rate for the 461 sensor is about 3/4 of a second for a full, 16-bit, 102 megapixel image. Compare this to about 10 seconds per frame for a 16803 camera using USB 2.
SUMMARY
The foregoing tells us that not only does the IMX461 outperform the 16803 in virtually every specification but also the ability of the QHY600 to adjust gain, read noise and full well to meet the demands of a variety of imaging situations makes the camera a more flexible instrument as well.

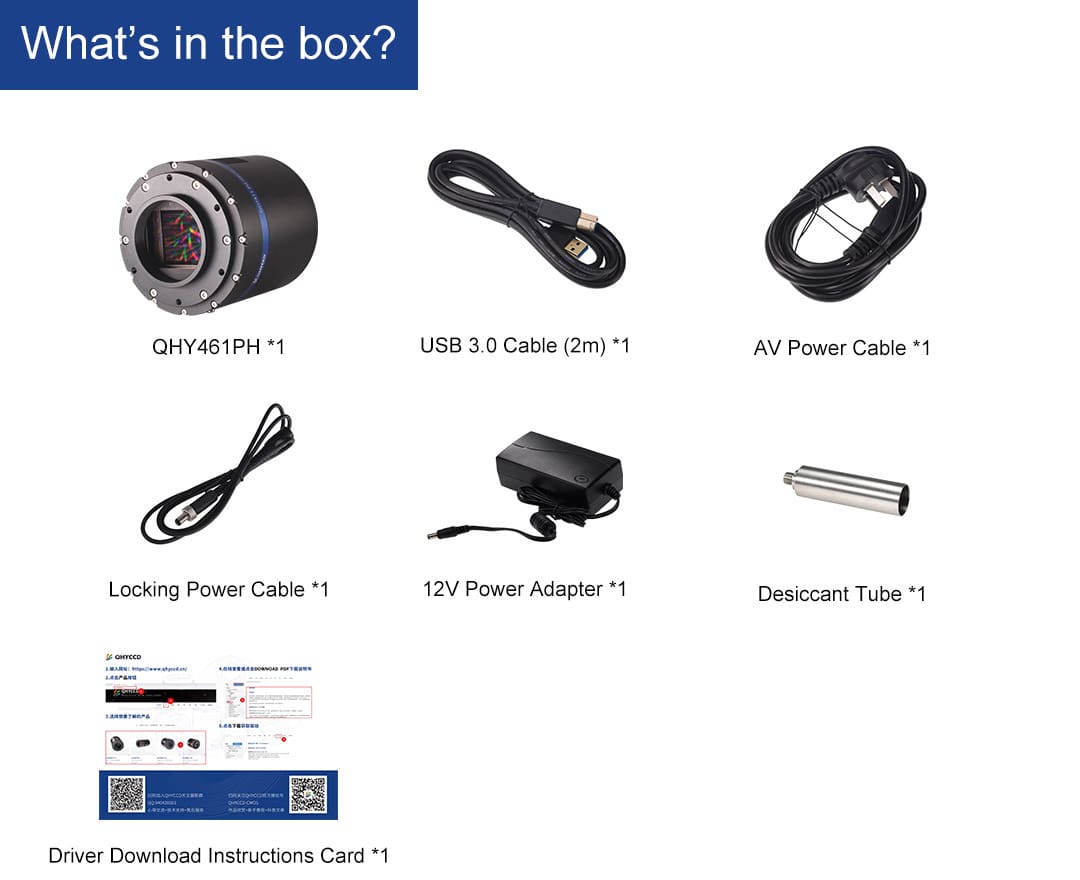

ModelQHY461-PH
Basic User Menu
Install “All-In-One” Driver&SDK Pack
Before Start: Input Voltage Requirements
The camera requires an input voltage between 11V and 13.8V. If the input voltage is too low the camera will stop functioning or it may reboot when the TEC power percent is high, causing a drain on the power. Therefore, please make sure the input voltage arrived to the camera is adequate. 12V is the best but please note that a 12V cable that is very long or a cable with small conductor wire may exhibit enough resistance to cause a voltage drop between the power supply and the camera. The formular is: V(drop) = I * R (cable). It is advised that a very long 12V power cable not be used. It is better to place the 12V AC adapter closer to the camera.
First connect the 12V power supply, then connect the camera to your computer via the USB3.0 cable. Make sure the camera is plugged in before connecting the camera to the computer, otherwise the camera will not be recognized. When you connect the camera for the first time, the system discovers the new device and looks for drivers for it. You can skip the online search step by clicking “Skip obtaining the driver software from Windows Update” and the computer will automatically find the driver locally and install it. If we take the 5IIISeries driver as an example (shown below), after the driver software is successfully installed, you will see QHY5IIISeries_IO in the device manager.
Please note that the input voltage cannot be lower than 11.5v, otherwise the device will be unable to work normally.
Install "All-In-One" System Pack
All-in-one Pack supports most QHYCCD models only except PoleMaster and several discontinued CCD cameras.
Since most of the contents of All-in-one package are plug-ins that support third-party software, the third-party capturing software that you want to use must be installed before the All-in-one package. Otherwise the program will report an error.
ALL-IN-ONE Pack contains:
System Driver, which is necessary for the camera operation and must be installed.
WDM Broadcast Driver, which can provide a live signal to Obs and other live software, you can install it if you have such needs like opeing a live show.
EZCAP_QT , which is developed by QHYCCD and can be used in QHY devices tests, and management of updates. So even if you won’t use EZCAP_QT for capturing, we suggest you install it.
Ascom driver, which is necessary for the camera used in Ascom (the latest version of Ascom is 6.6).
The two sorts of Ascom CFW Drivers correspond to two methods of controling the filter wheel: USB control and camera serial control. It is recommended that both drivers should be installed if you have a filter wheel.
CP210X_VCP is a serial driver. Some computers come with the driver, but the computer without the driver may be failed of controling the filter wheel.
SDKs for Third-party Software: Just pick and install the corresponding SDK according to the software you want to use. Don’t forget to check whether the software you are using is 32-bit or 64-bit and select the right SDKs.
SHARPCAP is also included in the pack, you can choose 32-bit or 64-bit to install. This is authorized by SHARPCAP.
QT LIB is a plug-in to ensure that 64-bit software can exeuate normally on some computers with poor compatibility.
Difference between Stable version and Beta Version: Beta version is the latest version, which gives priority to support for the latest products (the stable version may not be compatible with those yet), and has some of the latest optimized ,but experimental features. The stable version is older than the beta version but more stable, so it is recommended for beginners who are not using the latest products.
Don’t let the camera connect to the computer during the All-in-one pack installation process; connect it to the computer after all the installation is complete.
Connect DSO Imaging Software (e.g. NINA)
Before using software, make sure you have connected the cooling camera to the 12V power supply and connected it to the computer with a USB3.0 data cable. If it’s an uncooled camera, 12V power is not needed. We recommend 64-bit Software, like SharpCAP x64 , N.I.N.A x64. etc., especially when you’re using 16bit cameras.
In NINA, you can select the device to connect to QHY Camera directly without ASCOM driver.
If connecting to the camera via ASCOM is desired, first make sure you have installed both the QHYCCD ASCOM Drivers and ASCOM Platform. Then you would select the appropriate camera driver under the ASCOM section. Then click the Connect icon. Here we take NINA as an example, but it’s similar to other software packages supporting ASCOM, like MaxDL, The SkyX, etc.
Launch SharpCap. If the software and drivers mentioned above are installed successfully, the video image will appear automatically about 3 seconds after the software loads. You will also see the frame rate in the lower left corner of the software window as shown below.
If you have already started the SharpCap software before connecting the camera, in order to open the camera, click on the “camera” in the menu bar and then select the device.
Offset adjustment. When you completely block the camera (i.e., like taking a dark frame) you may find that the image is not really zero. Sometimes this will reduce the quality of the image contrast. You can get a better dark field by adjusting the offset. You can confirm this by opening the histogram as indicated in the figure below.
If you want to enter the 16-bit image mode, select the “RAW16” mode.
By selecting the “LX” mode you can expand the exposure setting range and take long exposures.
After cooling devices connected to the 12V power supply, the temperature control circuit will be activated. You can control the CMOS temperature by adjusting the settings in the figure below. Basically, you can control the temperature of CMOS by either adjusting “Cooler Power” or clicking “Auto” and setting “Target Temperature”. You can also see the CMOS temperature at the lower-left corner of the software window.
Run Sharpcap and make sure the QHY Camera works well under it. You will see the continous image appears.
Click “connect” button and it will show camera name and series number.
select QHY Camera tabl.
check on the “Enable TrigOut” Input 2 to the textbox near to the “GPIO PORT MODE”. Then click the “GPIO PORT MODE” Button to set the GPIO working mode.
Check the waveform output from the TrigPort.
The introduction of different GPIO PORT MODE
MODE0: Generic GPIO output mode / Auto Guide Port
In this mode. Four GPIO port is all output . You can control each port to output high or output low with the API. This mode does not controlled by Enable TrigOut.
You can select the check box of MODE0, GPIO1,GPIO2,GPIO3,GPIO4 to test this mode. This mode is also been used to test if the socket io port working well.
MODE1: 6PIN QHY-GPSBOX mode
In this mode, Four GPIO port is configed as gps_clock, gps_data, shuttermeassure,gps_control. You can connect with QHYCCD-GPSBOX. The camera will output the shuttermeassure signal to GPSBOX and GPSBOX will send the data to camera. Camera will replace the first some pixel to the gps data .
MODE2: 5PIN Generic TrigOut / TrigIn mode
In this mode, Four GPIO port is configed as TrigOut, ShutterMeassure, TrigIn, LinePeriod . Only TrigIn pin is input direction and other three pin is output direction.
In some camera, like QHY4040,QHY2020,QHY42PRO,QHY6060, The shuttermeassure waveform rising edge is the start exposure time and falling edge is the end exposure time 。 in other camera like QHY600,QHY268, QHY411,QHY461 etc, The shuttermeassure waveform is the vsync signal . It is near to the end of exposure time of the first row. For more information of TrigOut,LinePeriod. Please see some other document of QHYCCD supplied.
MODE3: 4PIN GPS Card TrigIn mode
In this mode. there is two pin is configured as ouptut . Both of the two pins is the shuttermeassure signal but one of it is inverted. This is suitbale for some GPS card which need such a “differencial signal”. But please note this is not LVDS signal. It is still TTL signa,
MODE4: Multi-Camera Master Mode
TO BE ADDED
MODE5: Multi-Camera Slave Mode
TO BE ADDED
MODE6: LED Calibration Mode
By using the controlled LED pulse, we can calibrate the distance from the TrigOut or ShutterMeassure signal to the real pixel/row start/end exposure time. To use this mode. You need to connect a LED to one GPIO pin and let the camera capture the flash that output from the camera. The start time and end time relative with the TrigOut/ShutterMeassure can be set by APIs. By check if the camera captured this pulse. You will get the delta time of the TrigOut/ShutterMeassure signal and use it to calibrate the messured GPS time.
mode 0
mode 1
mode 2
mode 3
mode 4
mode5
mode6
GPIO1
GPSBOX_Control
ShutterMessure+
ShutterMessure+
n.a
n.a
ShutterMessure+
GPIO2
GPSBOX_Data (IN)
TrigIn2
ShutterMessure-
n.a
n.a
TrigIn2
GPIO3
GPSBOX_ShutterMessure
LinePeriod
n.a
HSYNC(OUT)
HSYNC(IN)
LinePeriod
GPIO4
GPSBOX_CLK
TrigOut
n.a
VSYNC(OUT)
VSYNC(IN)
LED(OUTPUT)
GND
GND
GND
GND
GND
GND
GND
UVLO Function Introduction
UVLO(Under Voltage Locking), is primarily intended to protect the electronic device from damage caused by abnormally low voltages. Now only QHY600, QHY268, QHY410, QHY411, QHY461, QHY533 cameras have UVLO Protection.
UVLO warning execution
After a warning is given, the camera firmware will automatically turn off the cooler and will turn on the camera’s TEC protection mode. After the camera is reconnected, it will always work in TEC protection mode (maximum power cooler power will be limited to 70%). Since many times the voltage shortage is caused by the high resistance of the power supply cable itself, resulting in a large voltage drop at high currents, the voltage will usually rise after the power is limited. But limiting the power will affect the cooling temperature difference. Therefore, it is recommended that users first check the power supply cable to solve the problem of excessive resistance of the power supply cable.
If the user has solved the problem of insufficient supply voltage, the TEC protection mode can be removed through the menu of EZCAP_QT.
How to improve the power supply?
Make sure the output voltage of the AC adapter is not less than 12V and the maximum output current can reach 4A or more. Otherwise, the AC adapter itself will not meet the power demand of the camera and it may cause a low voltage problem.
Make sure that the 12V power supply cable connecting the AC adapter to the camera has a low impedance. The impedance of the positive and negative paths should not exceed 0.1 ohms each. Or the total impedance (positive + negative) should not exceed 0.2 ohms. Otherwise, the power supply cable should be thickened.
When using battery power, it is recommended to add a 12V output voltage regulator. If the battery is connected directly, usually the battery voltage reaches 13.8V when fully charged, and will gradually drop during use. It is easy to cause the camera to reach the low-voltage detection threshold.
How to clear the TEC protection status triggered by UVLO?
Once a UVLO event occurs, the camera will automatically memorize it and will work in a protected mode at a maximum of 70% power after reconnection. This memory can be erased as follows:
After you find the system error, you need to turn off the device and check the power supply. After inspecting the problem, open the ezcap software and select “Camera Settings” – “Preferences” – “Reset Flash Code” to reset the error status.
Why does the warning appear even though the power supply voltage is 12 V?
The voltage measured inside the camera is the voltage reaching the camera, not the voltage at the power adapter end. Therefore, the voltage measured at the power adapter end does not reflect the voltage received at the camera end. This is because the power cable has its own resistance. If the resistance is large, it will cause a large voltage drop. The voltage drop can be calculated by U = I * R. So if the power cable has a resistance of 0.2 ohms, it will produce a voltage drop of 3.3 * 0.2 = 0.66V. If the power adapter output is 12 V, the voltage reaching the camera is 12 – 0.66 = 11.34 V. To actually measure the input voltage at the camera end, you can refer to the photo below.
For cameras produced after September 2021, the UVLO is detected by communicating directly with the power manager, and the UVLO code that appears is 9, while for cameras produced before, the indirect detection method is used, and the UVLO code that appears is 3. The indirect detection method will detect UVLO except for the low voltage problem, and any other accident that causes CMOS not to work will also trigger the UVLO=3 alarm, for example, the camera is subject to severe electromagnetic interference, causing registers inside the CMOS not to work. Therefore, if UVLO=3 occurs, it is recommended to contact QHYCCD technical support for further judgment.
Using older versions of drivers and firmware may cause false positives (UVLO=9). Please make sure that ALL-in-one SDK version is out of stable version 2021.10.23 or higher. Please disconnect the 12V power supply during the driver installation.
QHYCCD BURST Mode
QHYCCD BURST Mode
Added functions related to BURST mode in SDK. Currently, cameras that support Burst function include QHY600, QHY411, QHY461, QHY268, QHY6060, QHY4040, QHY4040PRO, QHY2020, QHY42PRO, QHY183A
This mode is a sub-mode of continuous mode. This function can only be used in continuous mode. When this function is enabled, the camera will stop outputting image data, and the software frame rate will be reduced to 0. At this time, send relevant commands to the camera, and the camera will Output the image data with the specified frame number according to the settings, for example, set Start End to 1 6, the camera will output the image data with the frame number 2 3 4 5 when receiving the command.
Note:
1. When using Burst mode in fiber mode, the first Burst shot will be one less. For example, if the start end is set to 1 6, the output of 2 3 4 5 is normal, but in fact, only 3 4 will be output during the first burst shot. 5, 2 will not be received, the second and subsequent shots can normally obtain Burst images 2 3 4 5. This problem will be fixed later.
2. QHY2020, QHY4040 found that the frame number that came out when the exposure time was short is [start+1,end-1] but the one that came out under long exposure was [start+2,end]
3. When the camera is just connected, if the set end value is relatively large, the camera will directly output the picture after entering the burst mode. Therefore, it is necessary to set the camera to enter the IDLE state and then set the start end and related burst operations.
The following is the usage of Burst mode related functions:
