QHY Space Camera Series is designed by QHYCCD for commercial aerospace and near-earth and medium-earth orbit satellite imaging applications.

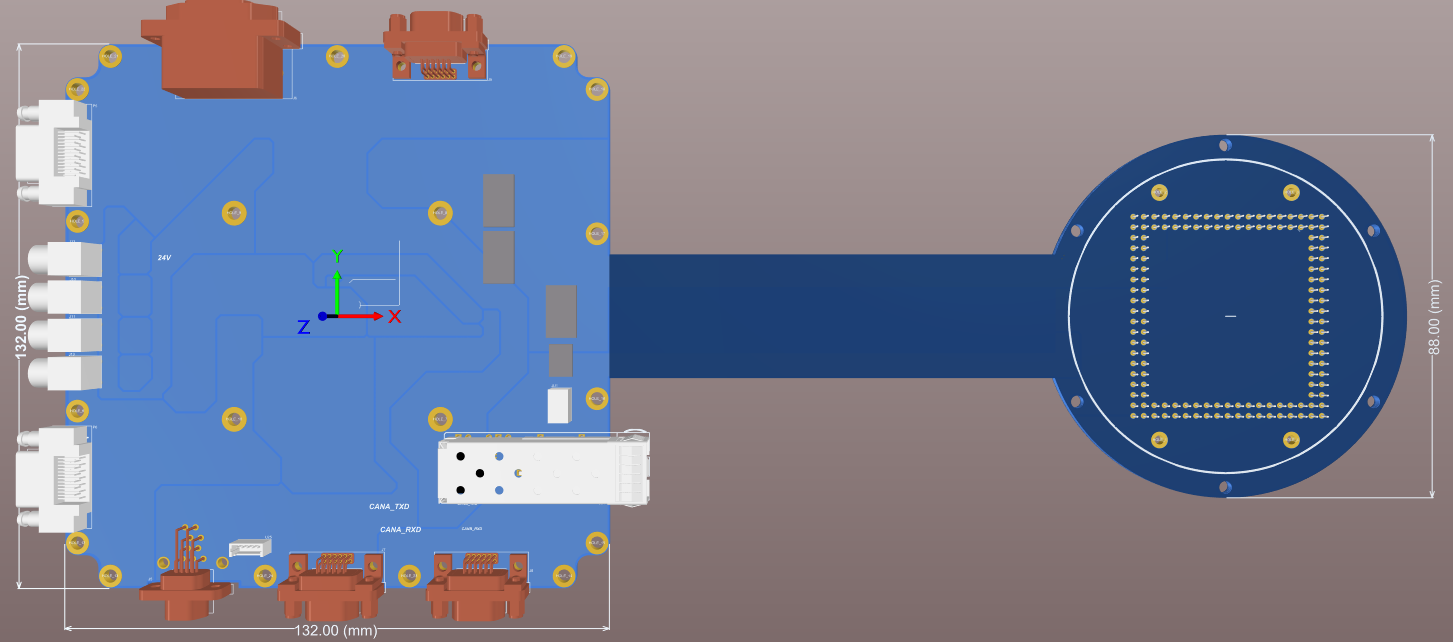

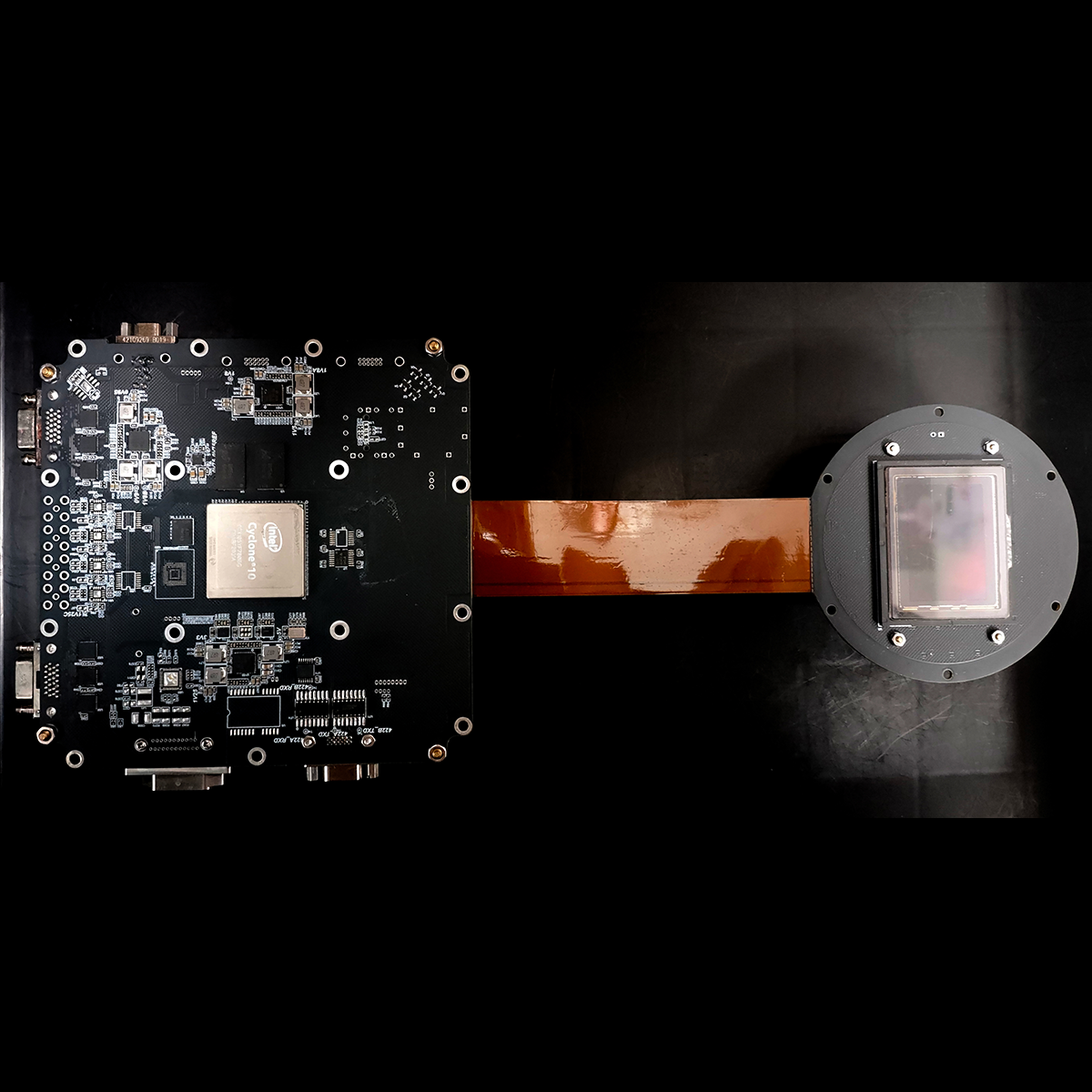

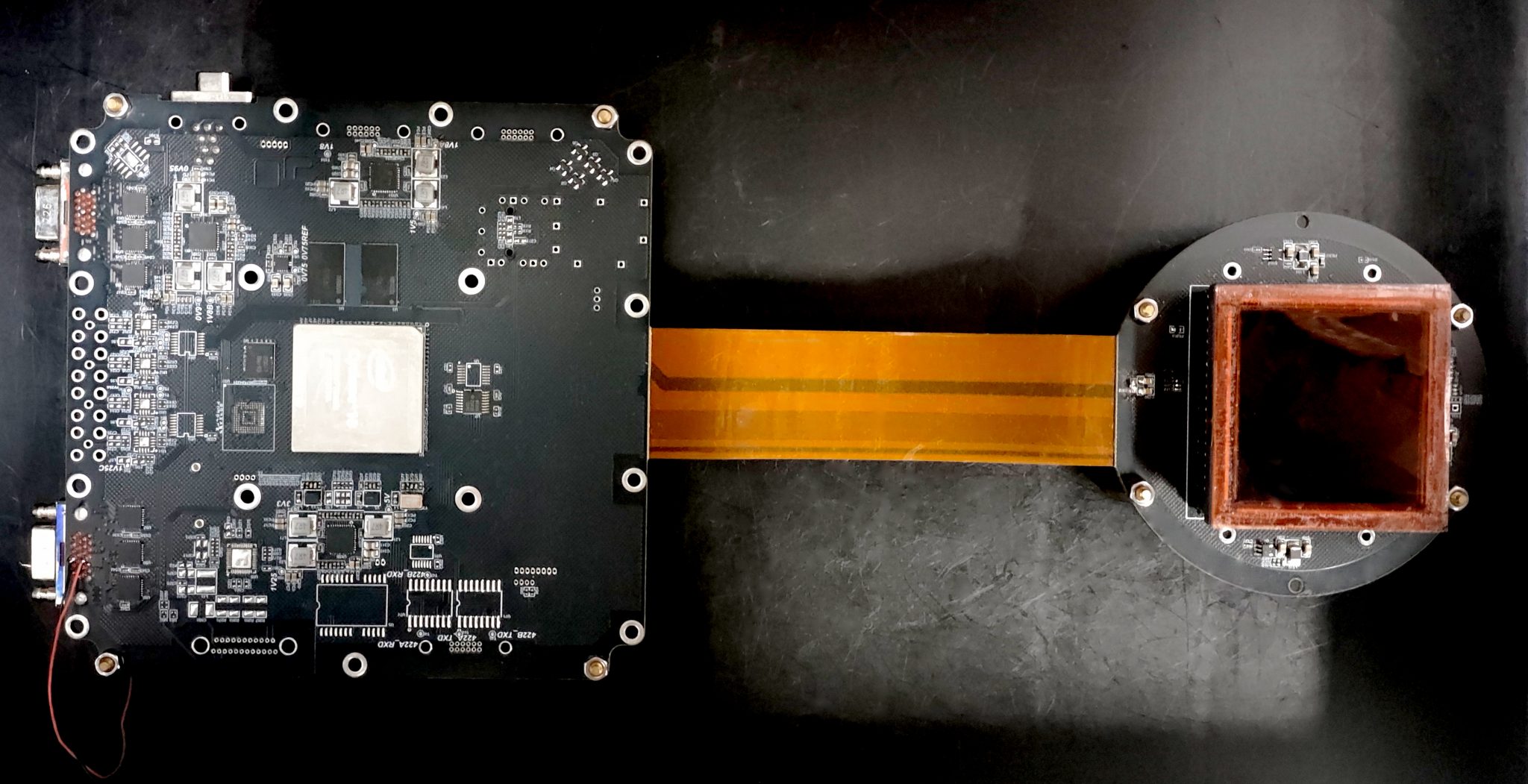

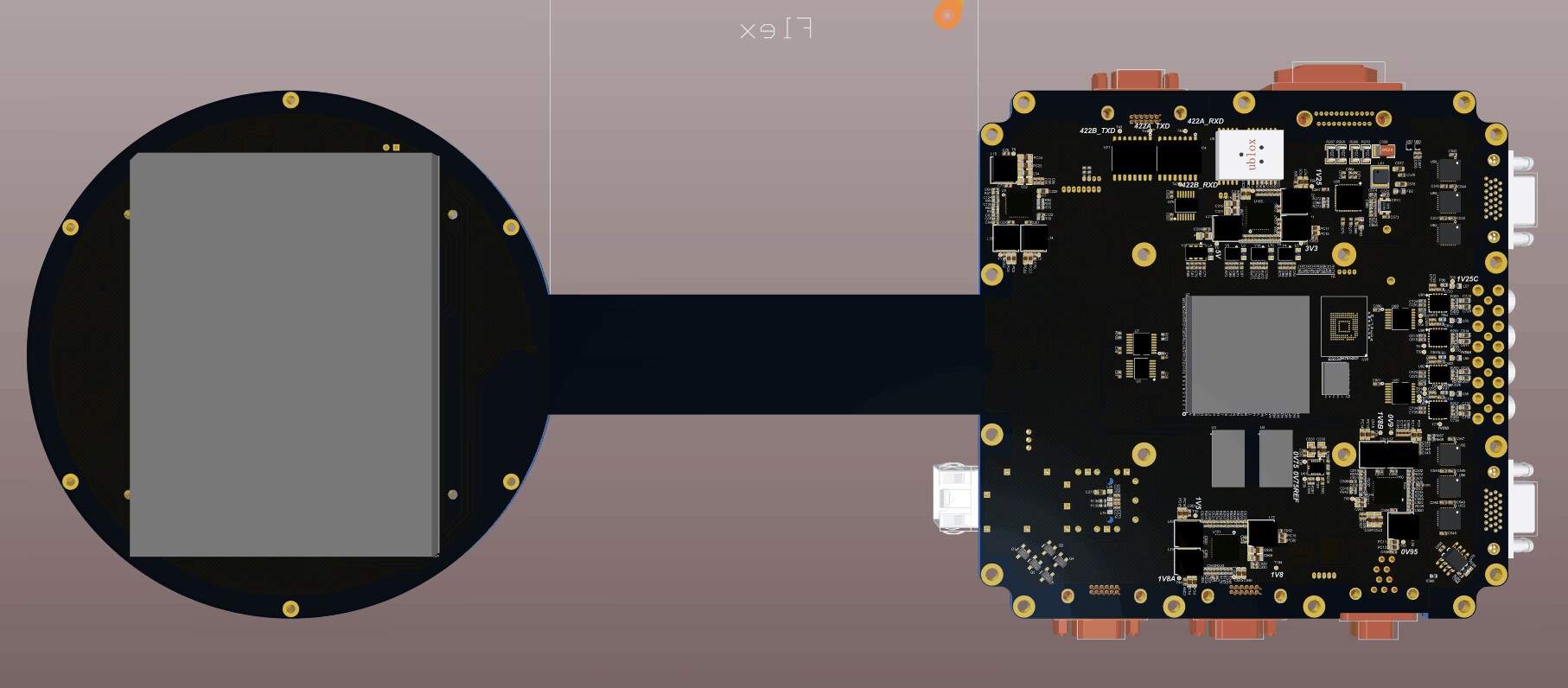

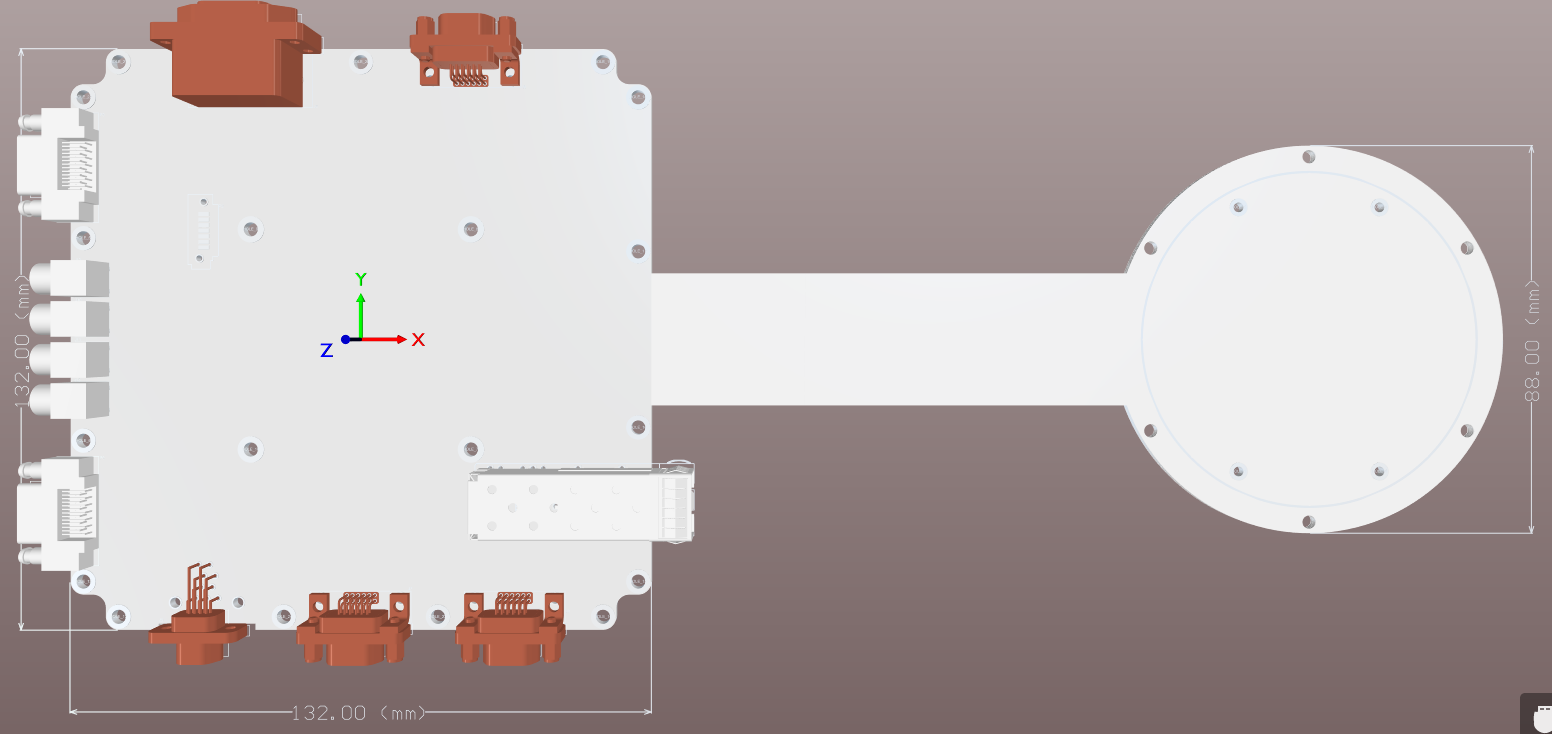

There are three products in this series, corresponding to the sensor models IMX455, GSENSE4040, and GSENSE6060. The cameras feature a separate structure with the image sensor board and mainboard connected via a socketless integrated FPCA cable, which facilitates thermal control of the image sensor and ensures high reliability.
The cameras use Cameralink as their data interface, configurable with either two sets of BaseX data outputs or one set of Full data outputs.
Additionally, the cameras include two sets of RS422 interfaces, a power input interface, an external trigger interface, and more.
| Sensor Model | IMX455 | GSENSE4040 | GSENSE6060 |
| Pixel Size | 3.76μm*3.76μm | 9.0μm*9.0μm | 10μm*10μm |
| Effective Image Area | 36mm*24mm | 36.9mm*36.9mm | 61.34mm*61.34mm |
| Effective Pixel Area | 9576*6388 | 4096*4096 | 6134*6134 |
It is equipped with a Sony IMX455 sensor.
It is equipped with a Gsense4040 sensor.
It is equipped with a Gsense6060 sensor.
