Evaluation of multipurpose QHY174 M Cooled monochrome camera

After the evaluation of  uncooled QHY5III 174 mono, I've recently received my new

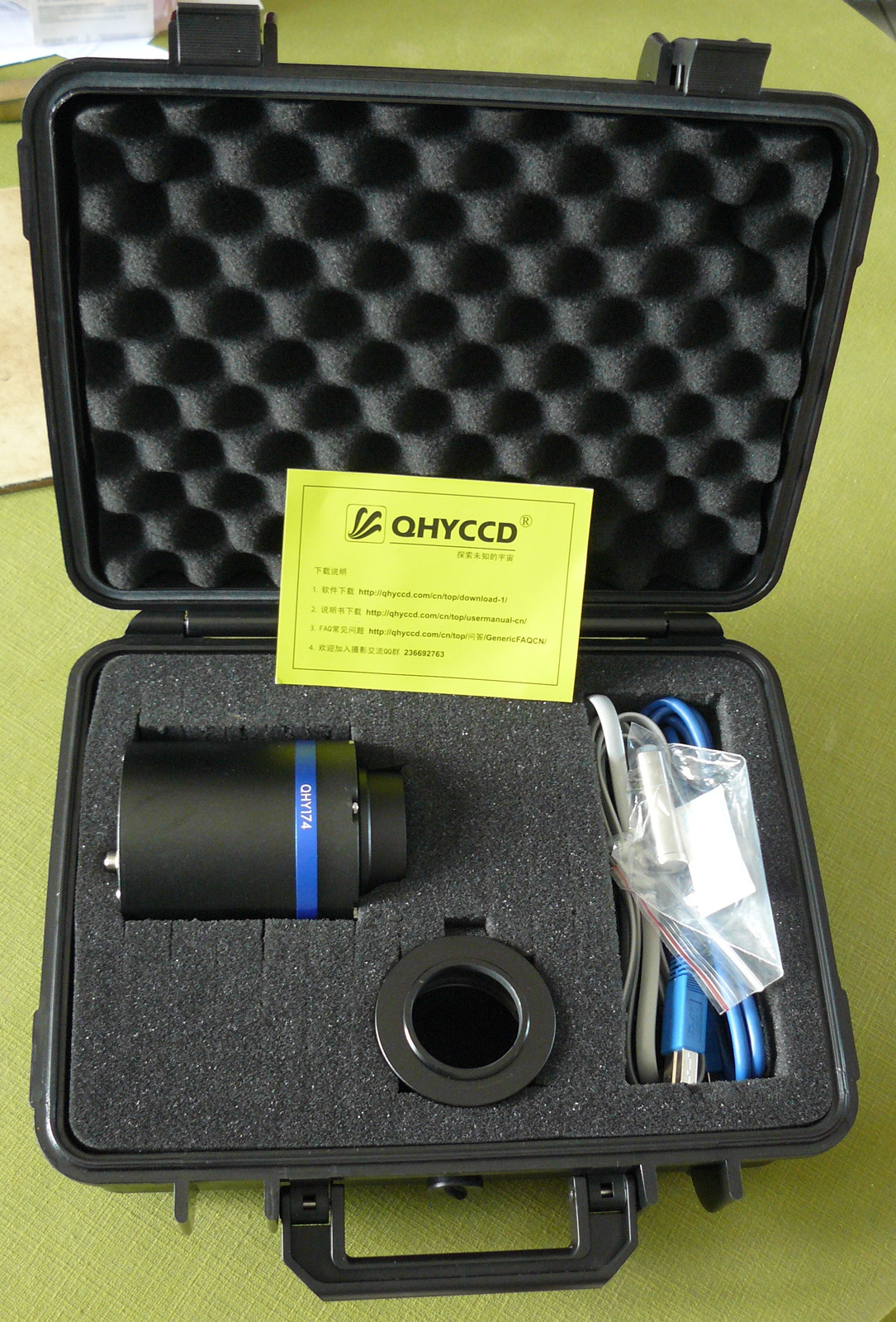

QHY5III 174 M Cooled for testing. In a nice plastic case to protect it. Inside you'll find
the camera, a 2" adaptor, Usb 3.0 cable, RJ11 (I guess ?) cable, 4 pin socket to
RJ11 adaptor, short cable adaptator for 12 V power supply and a Silicon gel socket,





It's a bigger camera compared to the little 1.25" QHY5III 174. But the cooling system
takes lot of space. Given delta max is -40°C. With a noname 12 V 6A power supply and
EZCap software, I have this result :
Sensor temperature just before cooling: 26°C
Sensor temperature after cooling down : -15°C
So delta measured with my camera :-41°C As expected.

IMX174 has a high dark current so cooling become usefull even for short exposure.
For me, as I previously noticed, cooling effect becomes visible for 2/3 seconds
exposure at high gain (70 and more). So it's useful for DSO, including with the short
exposure technique. In addition, between 5 and 10 seconds, the anti-amp glow process
is activated and effect clearly visible.

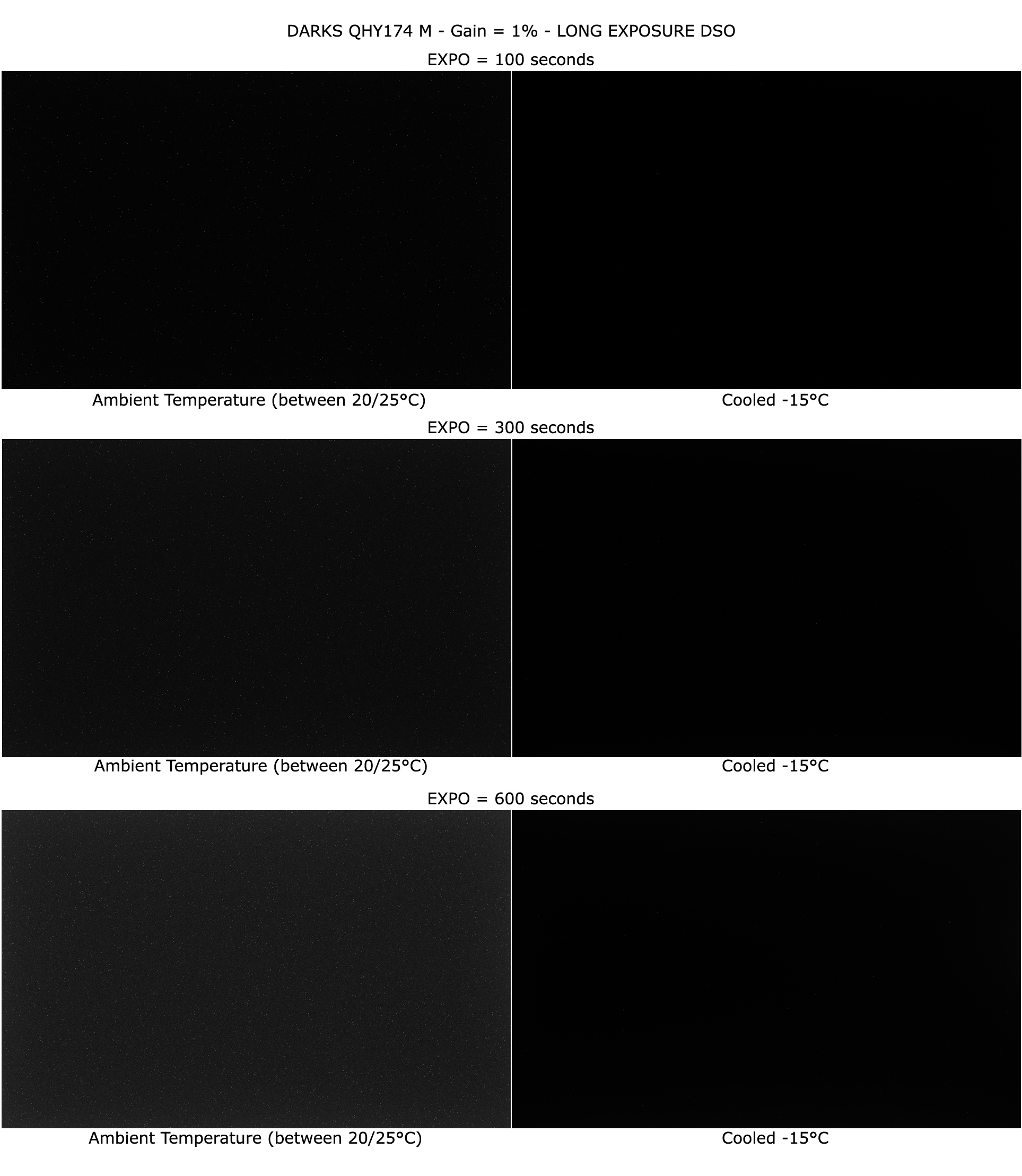

Darks with Gain = 1 (long exposure DSO) :

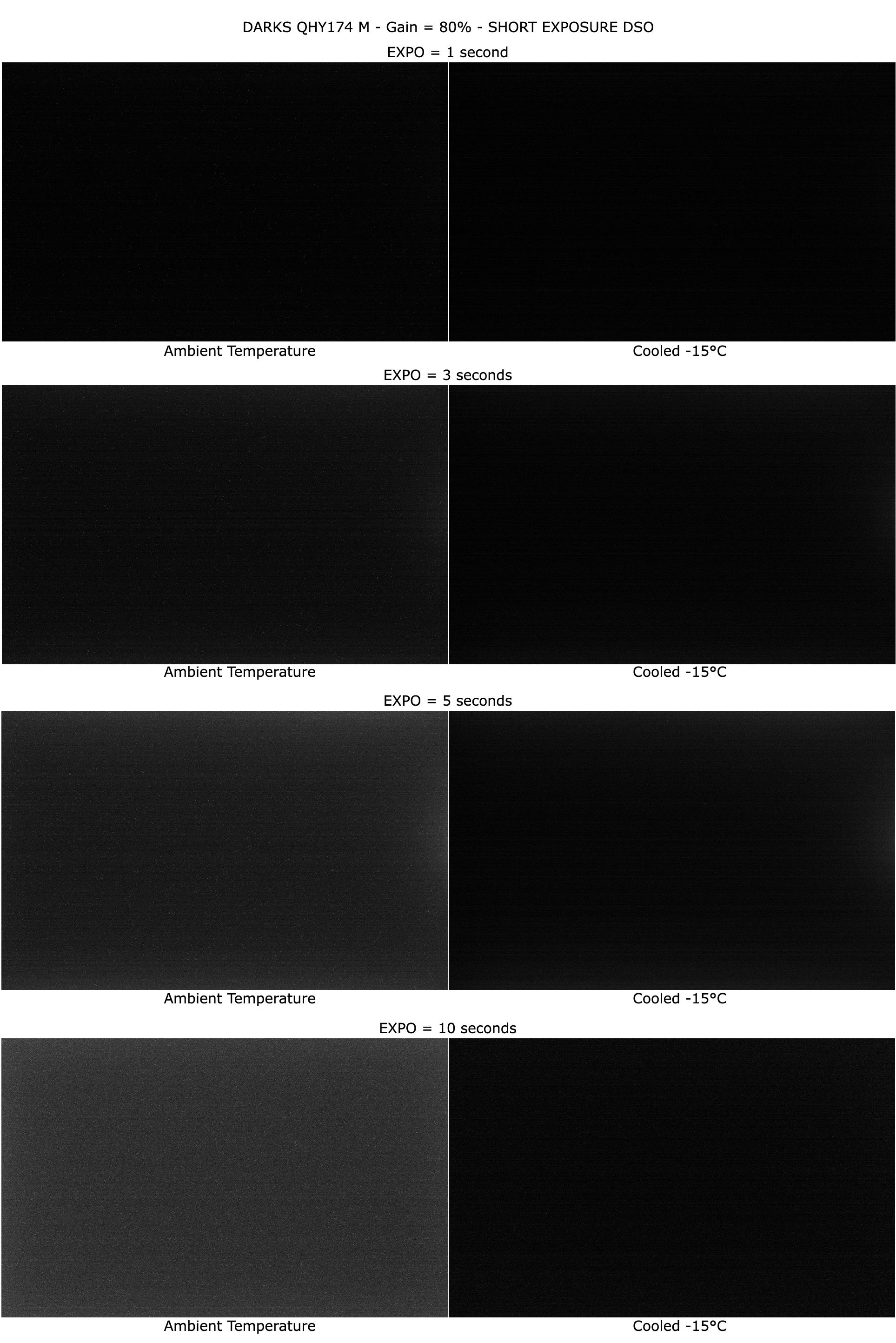

Darks with Gain = 80 (short exposure DSO) :


1- Frame rate tested with SharpCap 2.8.2378 (90 seconds .Ser capture; 1 ms;
---------------------------------------------------------------------------------------
Gain 50; Speed 1; USB Traffic 0, Cooling OFF) :
--------------------------------------------------------

Here are the frame rates for Lunar/planetary imaging :

Full frame : 133 fps (8 bits); 68 fps (16 bits)
1600x1200 : 134 fps (8 bits); 77 fps (16 bits)
1280x1024 : 156 fps (8 bits); 90  fps (16 bits)
1024x768 : 205 fps (8 bits); 118  fps (16 bits)
800x600 : 257 fps (8 bits); 148 fps (16 bits)
640x480 : 316 fps (8 bits); 182 fps (16 bits)
320x240 : 572 fps (8 bits); 333 fps (16 bits)

Binning 2x : 960 x 600 : 134 fps (8 bits); 75 fps (16 bits)

PC with Intel Core I7-4770 CPU @ 3.4 Ghz - 16 Mo RAM DDR4
Windows 7 64 bits - SSD Samsung 840 EVO 500 Mo.

2 - Noise measured with Isis software  - COOLING OFF AND FAN OFF :
---------------------------------------------------------------------------------
Darks/Offsets/Flats
Ambiant temperature was near 25°C.
Offset (in SharCap) = 10

Non refroidi - Uncooled - Dark 6 seconds - Gain = 0
----------------------------------------------------------------
Gain : 0.486 e-/ADU
Readout noise - Bruit de lecture (RON) : 6.15 électron(s)
Niveau moyen de l'image d'offset - Mean Offset Level : 160.7 ADU
Niveau moyen de l'image de dark - Mean Dark Level : 229.9 ADU
Dark signal - Signal d'obscurité : 5.6030 e-/s

Non refroidi - Uncooled - Dark 6 seconds - Gain = 20
------------------------------------------------------------------
Gain : 0.150 e-/ADU
Readout noise - Bruit de lecture (RON) : 4.47 électron(s)
Niveau moyen de l'image d'offset - Mean Offset Level : 159.3 ADU
Niveau moyen de l'image de dark - Mean Dark Level : 340.6 ADU
Dark signal - Signal d'obscurité : 4.5209 e-/s

Non refroidi - Uncooled - Dark 6 seconds - Gain = 20
-----------------------------------------------------------------
Gain : 0.047 e-/ADU
Readout noise - Bruit de lecture (RON) : 3.69 électron(s)
Niveau moyen de l'image d'offset - Mean Offset Level : 151.4 ADU
Niveau moyen de l'image de dark - Mean Dark Level: 659.4 ADU
Dark signal - Signal d'obscurité : 3.9551 e-/s

Non refroidi - Uncooled - Dark 6 seconds - Gain = 20
-------------------------------------------------------------------
Gain : 0.014 e-/ADU
Readout noise - Bruit de lecture (RON) : 2.63 électron(s)
Niveau moyen de l'image d'offset - Mean Offset Level : 179.6 ADU
Niveau moyen de l'image de dark - Mean Dark Level : 1730.8 ADU
Dark signal - Signal d'obscurité : 3.6839 e-/s

Non refroidi - Uncooled - Dark 6 seconds - Gain = 20
--------------------------------------------------------------------
Gain : 0.004 e-/ADU
Readout noise - Bruit de lecture (RON) : 1.92 électron(s)
Niveau moyen de l'image d'offset - Mean Offset Level : 362.6 ADU
Niveau moyen de l'image de dark - Mean Dark Level : 5183.5 ADU
Dark signal - Signal d'obscurité : 3.1000 e-/s

Non refroidi - Uncooled - Dark 6 seconds - Gain = 20
--------------------------------------------------------------------
Gain : 0.001 e-/ADU
Readout noise - Bruit de lecture (RON) : 1.39 électron(s)
Niveau moyen de l'image d'offset - Mean Offset Level : 723.5 ADU
Niveau moyen de l'image de dark - Mean Dark Level : 11695.2 ADU
Dark signal - Signal d'obscurité : 2.3514 e-/s


3 - Noise measured with Isis software  - COOLING ON AND FAN ON :
----------------------------------------------------------------------------------
Darks/Offsets/Flats
Ambiant temperature was near 25°C.

Refroidi/Cooled -15°C - Dark 6 seconds - Gain = 0
--------------------------------------------------------------------
Readout noise - Bruit de lecture (RON) : 5.65 électron(s)
Niveau moyen de l'image d'offset - Mean Offset Level : 162.8 ADU
Niveau moyen de l'image de dark - Mean Dark Level : 203.9 ADU
Dark signal - Signal d'obscurité : 3.2750 e-/s

Refroidi/Cooled -15°C - Dark 6 seconds - Gain = 20
-------------------------------------------------------------------
Gain : 0.147 e-/ADU
Readout noise - Bruit de lecture (RON) : 4.08 électron(s)
Niveau moyen de l'image d'offset - Mean Offset Level : 163.9 ADU
Niveau moyen de l'image de dark - Mean Dark Level : 250.9 ADU
Dark signal - Signal d'obscurité : 2.1333 e-/s

Refroidi/Cooled -15°C - Dark 6 seconds - Gain = 40
----------------------------------------------------------------------
Gain : 0.046 e-/ADU
Readout noise - Bruit de lecture (RON) : 3.45 électron(s)
Niveau moyen de l'image d'offset - Mean Offset Level : 169.1 ADU
Niveau moyen de l'image de dark - Mean Dark Level : 367.8 ADU
Dark signal - Signal d'obscurité : 1.5228 e-/s

Refroidi/Cooled -15°C - Dark 6 seconds - Gain = 60
------------------------------------------------------------------
Gain : 0.014 e-/ADU
Readout noise - Bruit de lecture (RON) : 2.65 électron(s)
Niveau moyen de l'image d'offset - Mean Offset Level : 206.2 ADU
Niveau moyen de l'image de dark - Mean Dark Level : 780.9 ADU
Dark signal - Signal d'obscurité : 1.3480 e-/s

Refroidi/Cooled -15°C - Dark 6 seconds - Gain = 80
-----------------------------------------------------------------
Gain : 0.004 e-/ADU
Readout noise - Bruit de lecture (RON) : 2.03 électron(s)
Niveau moyen de l'image d'offset - Mean Offset Level : 426.8 ADU
Niveau moyen de l'image de dark - Mean Dark Level : 2196.9 ADU
Dark signal - Signal d'obscurité : 1.1574 e-/s

Refroidi/Cooled -15°C - Dark 6 seconds - Gain = 100
------------------------------------------------------------------
Gain : 0.001 e-/ADU
Readout noise - Bruit de lecture (RON) : 1.61 électron(s)
Niveau moyen de l'image d'offset - Mean Offset Level : 887.2 ADU
Niveau moyen de l'image de dark - Mean Dark Level : 4834.3 ADU
Dark signal - Signal d'obscurité : 0.9231 e-/s


4 - Long Exposure Noise measured with Isis software  - COOLING ON AND FAN ON :
-----------------------------------------------------------------------------------------------

Longue pose/Long expo. 300 sec - Cooled/refroidi -15°C - Gain = 0
--------------------------------------------------------------------------------
Gain : 0.478 e-/ADU
Readout noise - Bruit de lecture (RON) : 5.65 électron(s)
Niveau moyen de l'image d'offset - Mean Offset Level : 162.8 ADU
Niveau moyen de l'image de dark - Mean Dark Level : 335.7 ADU
Dark signal - Signal d'obscurité : 0.2754 e-/s

Longue pose/Long expo. 600 sec - Cooled/refroidi -15°C - Gain = 0
---------------------------------------------------------------------------------
Gain (inverse) de la caméra : 0.478 e-/ADU
Readout noise - Bruit de lecture (RON) : 5.65 électron(s)
Niveau moyen de l'image d'offset - Mean Offset Level : 162.8 ADU
Niveau moyen de l'image de dark - Mean Dark Level : 503.5 ADU
Dark signal - Signal d'obscurité : 0.2713 e-/s


First pictures with QHY174 M cooled (-18°C) + Newtonian T400 F/D 4.5 on
LXD 750 mount. No filter, no field corrector. Sharcap software for capturing (PNG files).
Short exposure technique.

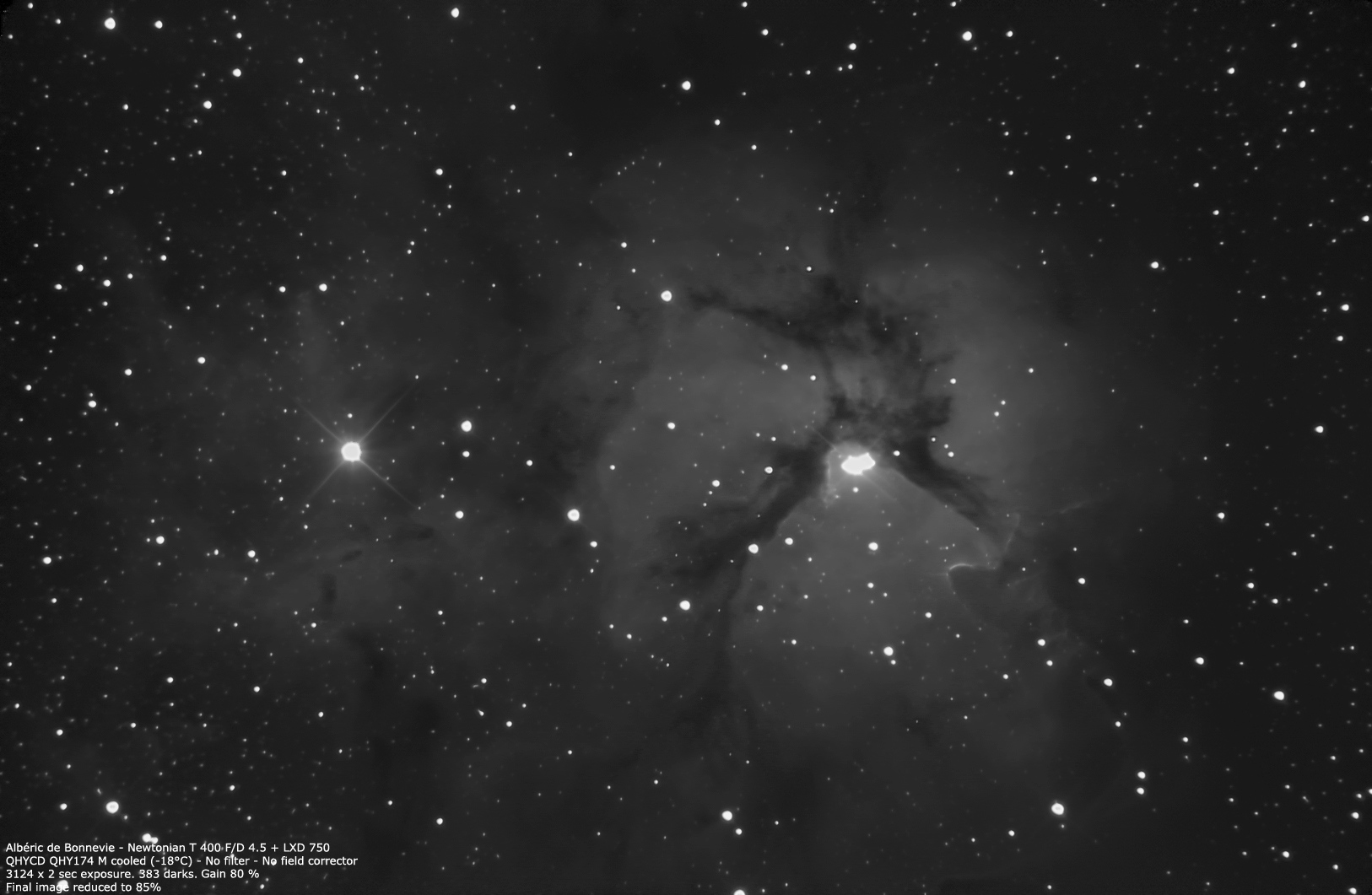

M20- Trifid Nebula - 3124 x 2 seconds + 383 darks last 7 July 2016.

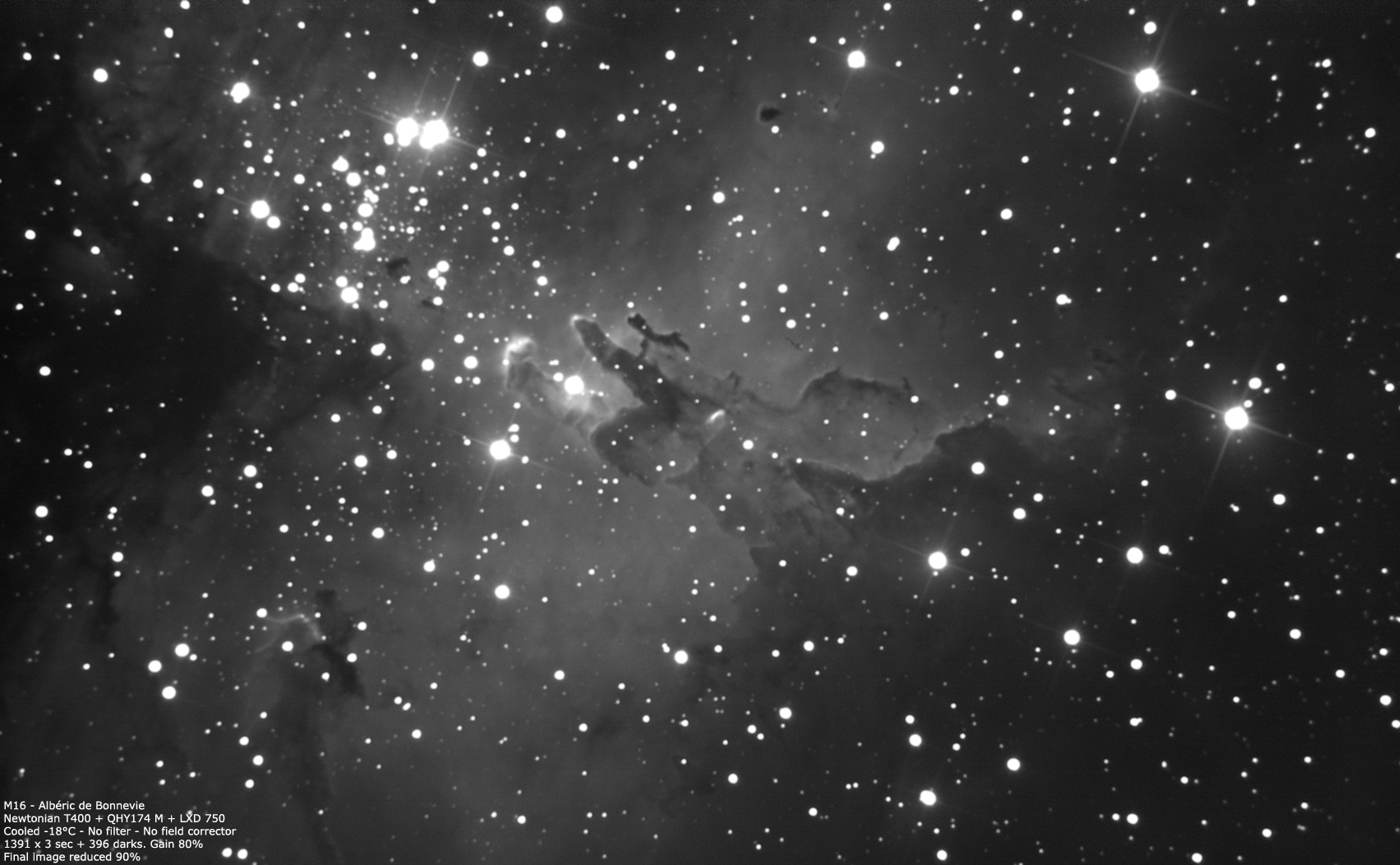

M16- The pilars of creation - 1391 x 3 seconds + 396 darks last 9 July 2016.



TO BE CONTINUED....

Albéric
« Last Edit: July 17, 2016, 10:08:32 am by xs_man »

Re: Evaluation of multipurpose QHY174 M Cooled monochrome camera
« Reply #1 on: July 15, 2016, 01:45:27 pm »
Albéric, thanks for sharing your amazing photos!
Cyclops Optics - QHYCCD distributor in Southeast Asia, Hong Kong, Macau and Taiwan.
Dealer of QHYCCD, William Optics, STC, Optolong, HyperSharp, IDAS, Pentax eyepieces, Starlights Instruments, Vixen and Takahashi.

Re: Evaluation of multipurpose QHY174 M Cooled monochrome camera
« Reply #2 on: July 17, 2016, 10:17:11 am »
Thanks Robin !

I've added my Noise measurements to compare : uncooled, cooled short exposure and cooled long exposure.  ;)

Albéric

QiuHY

  • *****
  • 4770
    • View Profile
    • Email
Re: Evaluation of multipurpose QHY174 M Cooled monochrome camera
« Reply #3 on: July 17, 2016, 10:47:18 am »
Hello Alberic,

        That's interesting testing results. Especially the thermal noise under short and long exposure. Looks the long exposure test condition the thermal noise is much less than the short exposure.

        I think the reason this the anti-amp control circuit. The long exposure enabled this circuit .


Best regards,
Qiu Hongyun
Qiu Hongyun

Re: Evaluation of multipurpose QHY174 M Cooled monochrome camera
« Reply #4 on: July 19, 2016, 12:14:38 pm »
Hi Qiu, :)

As far as I'm concerned I agree with you the amp glow lighting effect is seen
as a a kind of thermal noise.
So thermal noise is high under 7 seconds (anti-amp glow disable) and substancially
reduced when anti-amp glow is enabled (8 seconds and more).
The anti-amp glow is really effective for long exposure imaging, that's obvious !

Albéric

Re: Evaluation of multipurpose QHY174 M Cooled monochrome camera
« Reply #5 on: July 22, 2016, 04:31:07 pm »
New picture : M27 with QHY 174 M cooled  + Orion Optics  300 mm F/D 5.3 on EQ-6.
Last 5th of July.

It's a mix of 1 second exposure (without anti-amp glow) and 8 seconds (with anti-amp glow
enabled).

Setup :
-------
QHY174 M (cooled -15°C) + 300 F/D 5.3 Orion Optics on EQ-6
No filter. Manual sort out.

5573 frames 1 second exposure + 129 frames 8 seconds exposure.
darks.


M 27 :



Raw image - 1 second :



Raw Image - 8 seconds :




Albéric

Re: Evaluation of multipurpose QHY174 M Cooled monochrome camera
« Reply #6 on: July 31, 2016, 04:26:40 pm »
Another picture, M8, Laguna Nebula :



Setup :
-------
QHY174 M (cooled -15°C) + 300 F/D 5.3 Orion Optics on EQ-6
No filter. Manual sort out.

1162 frames 3 seconds exposure + 132 darks.

Best.

Albéric

Re: Evaluation of multipurpose QHY174 M Cooled monochrome camera
« Reply #7 on: August 06, 2016, 01:20:50 pm »
Hi All,

1 new picture, M57, a mix of 2 pictures : one with 5 seconds exposure with T300 telescope
and QHY174 M cooled (-18°C) for bakgcround. Second one is a short exposure sequence
with 400 ms exposures with T 400 telescope and QHY5III 174 M uncooled.



And previous M27 with enhanced process to show the faint stars



Albéric

Re: Evaluation of multipurpose QHY174 M Cooled monochrome camera
« Reply #8 on: August 09, 2016, 11:03:22 am »
Here is NGC 891 galaxy taken T400 +QHY174 M cooled at -20°C.
Each exposure is 2.5 seconds. During 2 sessions last nights.




Setup :
-------
QHY174 M ( -20°C cooled) with newtonian T 400 F/D 4.5 on LXD 750 mount
No filter. Manual sorting. Gain = 75.
(2211 + 1762) exposures; 2.5 second each;  (333 + 441) darks

Registration with DeepSkyStacker.
Precessing with Iris/Photoshop.
cosmetic processing with Photoshop.

120% zoomed final image.


Re: Evaluation of multipurpose QHY174 M Cooled monochrome camera
« Reply #9 on: September 02, 2016, 06:12:36 am »
Reprocessed NGC 891 with 3 nights (added 1765 x 2 seconds)



Sharper dust band and better background.

New picture : NGC 6503



Setup :
-------
QHY174 M ( -15°C cooled) with newtonian T 400 F/D 4.5 on LXD 750 mount
No filter. Manual sorting. Gain = 75.
(4160 + 2941) exposures; 2.5 second each;  (350 + 380) darks

Registration with DeepSkyStacker.
Precessing with Iris/Photoshop.
cosmetic processing with Photoshop.

120% zoomed final image.


Deep sky imaging with short exposure is really fun !  ;)

Albéric

Re: Evaluation of multipurpose QHY174 M Cooled monochrome camera
« Reply #10 on: September 18, 2016, 05:45:59 am »
Hi all !  ;)

New target : the great galaxy NGC7331 and neighborhood.
I add a 2 seconds raw picture to give an idea of the signal level.

Setup  :
-----------
QHY174 M (cooled -5°C) with 300 Orion Optics F/D 5.3 on EQ-6 mount
Gain = 75
(6088+4871+3481) x 2 seconds exposure + darks (acquisitions planned on 3 nights)

Registration with DeepSkyStacker
Processing with Iris/Photoshop.
Post-processing with Photoshop.

100% full size.




Re: Evaluation of multipurpose QHY174 M Cooled monochrome camera
« Reply #11 on: September 18, 2016, 11:04:10 pm »
Reprocessed NGC 891 with 3 nights (added 1765 x 2 seconds)



Sharper dust band and better background.

New picture : NGC 6503



Setup :
-------
QHY174 M ( -15°C cooled) with newtonian T 400 F/D 4.5 on LXD 750 mount
No filter. Manual sorting. Gain = 75.
(4160 + 2941) exposures; 2.5 second each;  (350 + 380) darks

Registration with DeepSkyStacker.
Precessing with Iris/Photoshop.
cosmetic processing with Photoshop.

120% zoomed final image.


Deep sky imaging with short exposure is really fun !  ;)

Albéric

excellent !

Re: Evaluation of multipurpose QHY174 M Cooled monochrome camera
« Reply #12 on: October 02, 2016, 06:51:12 am »
I've tried a more difficult target, Stephan's Quintet galaxies, near NGC7331
It's a mix of pictures taken with 2 different telescopes : 300 mm Newtonian and
400 mm Newtonian.  ;)

Setup Stephan's Quintet :
---------------------------
QHY174 M (-5°C cooled) and 400 F/D 4.5 Newtonian or 300 Orion Optics F/D 5.3
Gain = 75.
(4557+3760+2096) 2 seconds subs + darks (3 nights)

Registration with DeepSkyStacker
Procesing with Iris/Photoshop.
Past processing with Photoshop.

100% Image size.
